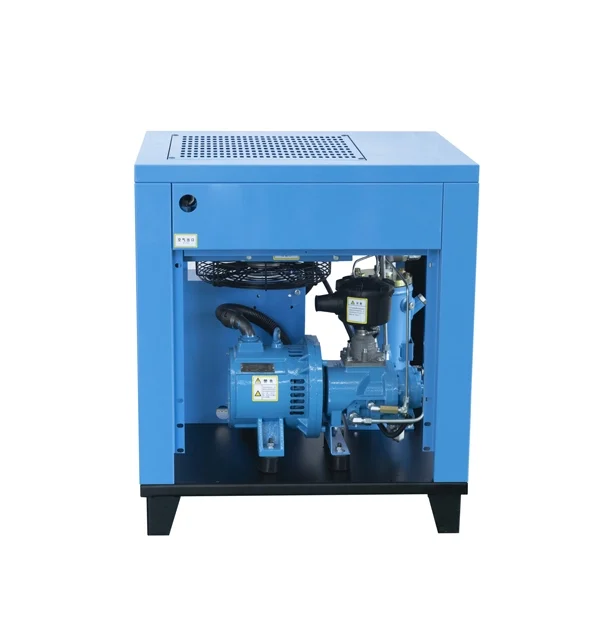

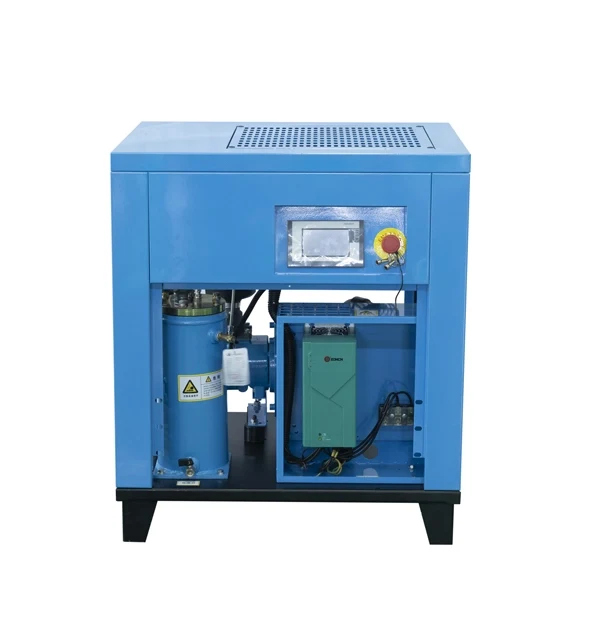

Atmospheric Permanent Magnet Variable Frequency Screw Air Compressor
Features
- Saving electric energy
- Greatly reduce the maintenance cost
- Constant pressure air supply can improve the production efficiency and product quality
- Extend the service life of the wholesale screw air compressor
- Reduce noise
- Cost-effective advantage.
Specifications
| Model | ALS-08A/YC | ALS-08A/FYC | ALS-11A/YC | ALS-11A/FYC | ALS-15A/YC | ALS-15A/FYC | ALS-18.5A/YC | ALS-18.5A/FYC | ALS-22A/YC | ALS-22A/FYC | ALS-30A/YC | ALS-30A/FYC | ALS-37A/YC | ALS-37A/FYC | ALS-45A/YC | ALS-45A/FYC | ALS-55A/FYC | ALS-75A/FYC | ALS-90A/FYC | ALS-110A/FYC | ALS-132A/FYC | ALS-160A/FYC | ALS-185A/FYC | ALS-220A/FYC | ALS-250A/FYC |
Air delivery (M³/Min)/ Discharge pressure (Mpa) | 1.0/0.8 | 1.0/0.8 | 1.5/0.8 | 1.5/0.8 | 2.3/0.8 | 2.3/0.8 | 2.8/0.8 | 2.8/0.8 | 3.2/0.8 | 3.2/0.8 | 5.0/0.8 | 5.0/0.8 | 6.2/0.8 | 6.2/0.8 | 7.0/0.8 | 7.0/0.8 | 9.2/0.8 | 12.6/0.8 | 15.0/0.8 | 19.8/0.8 | 23.2/0.8 | 27.6/0.8 | 30.4/0.8 | 34.3/0.8 | 40.5/0.8 |
| 0.85/1.0 | 0.85/1.0 | 1.3/1.0 | 1.3/1.0 | 2.1/1.0 | 2.1/1.0 | 2.6/1.0 | 2.6/1.0 | 3.0/1.0 | 3.0/1.0 | 3.2/1.0 | 3.2/1.0 | 5.0/1.0 | 5.0/1.0 | 6.2/1.0 | 6.2/1.0 | 7.0/1.0 | 9.2/1.0 | 12.6/1.0 | 15.0/1.0 | 19.8/1.0 | 23.2/1.0 | 27.6/1.0 | 30.4/1.0 | 34.3/1.0 | |
| 0.7/1.3 | 0.7/1.3 | 1.1/1.3 | 1.5/1.3 | 2.3/1.3 | 2.8/1.3 | 3.2/1.3 | 5.0/1.3 | 6.2/1.3 | 7.0/1.3 | 9.2/1.3 | 12.6/1.3 | 15.0/1.3 | 19.0/1.3 | 23.2/1.3 | 26.0/1.3 | 30.4/1.3 | 34.3/1.3 | ||||||||
| Power (kW) | 7.5 | 7.5 | 11 | 11 | 15 | 15 | 18.5 | 18.5 | 22 | 22 | 30 | 30 | 37 | 37 | 45 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 |
| Voltage (V/HZ) | 380/50(Other voltages are available) | ||||||||||||||||||||||||
| Starting mode | variable frequency starting | ||||||||||||||||||||||||
| Driven mode | Direct | ||||||||||||||||||||||||
| Rotary speed (r/min) | 3000 | ||||||||||||||||||||||||
| Oil content (ppm) | ≤3 | ||||||||||||||||||||||||
| Working environment temperature (℃) | -50 | ||||||||||||||||||||||||
| Exhaust temperature (℃) | ≤Ambient temperature＋15 | ||||||||||||||||||||||||
| Lubricant volume (L) | 7 | 7 | 10 | 10 | 10 | 10 | 18 | 18 | 18 | 18 | 18 | 18 | 25 | 25 | 25 | 25 | 65 | 65 | 65 | 90 | 90 | 110 | 110 | 150 | 150 |
| Noise［DB(A)］ | 64±2 | 64±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 68±2 | 72±2 | 72±2 | 76±2 | 76±2 | 76±2 | 86±2 | 86±2 | 86±2 | 86±2 | 86±2 | 86±2 |
| Overall dimension [L*W*H (mm)] | 760*620*840 | 850*700*920 | 1000*750*1000 | 1000*750*1000 | 1000*750*1000 | 1000*750*1000 | 1120*850*1160 | 1120*850*1160 | 1120*850*1160 | 1120*850*1160 | 1120*850*1160 | 1280*850*1160 | 1280*1000*1290 | 1280*1000*1290 | 1280*1000*1290 | 1400*1000*1290 | 1900*1250*1560 | 1900*1250*1560 | 1900*1250*1560 | 2300*1470*1840 | 2300*1470*1840 | 2300*1470*1840 | 2540*1640*1840 | 3200*1980*2150 | 3200*1980*2150 |
| Weight (KG) | 140 | 160 | 240 | 240 | 240 | 240 | 310 | 310 | 310 | 310 | 310 | 400 | 510 | 510 | 510 | 670 | 1000 | 1100 | 1200 | 1600 | 1800 | 2000 | 2600 | 3600 | 3800 |
| Outlet pipe diameter | RP1/2 | RP1/2 | RP3/4 | RP3/4 | RP3/4 | RP3/4 | RP1 | RP1 | RP1 | RP1 | RP1 | RP1 | RP1 1/2 | RP1 1/2 | RP1 1/2 | RP1 1/2 | RP2 | RP2 | RP2 | RP2 1/2 | RP2 1/2 | RP2 1/2 | RP2 1/2 | DN100 | DN100 |
